Products

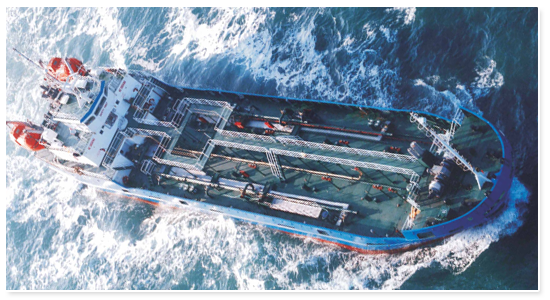

  • PRODUCT TANKER (HULL # 301)

    +

    FLAG : MAURITIUS
    OWNER : TURQUISE MANAGMENT INC, LIECHTENSTEIN, U.K.
    CLASS : BUREAU VERITAS, OIL TANKER, ESP, FP>60C, UNRESTRICTED SERVICE
    L.O.A. : 62.44 M
    BREADTH : 12.0M
    DEPTH MOULDED : 5.0 M
    DESIGN DRAFT : 3.80 M
    D.W.T. : 1450 TONNES
    CARGO TANKS : 1450 TONNES
    CARGO CAPACITY : 1450 M3
    NO. OF CARGOES : THREE (IFO, MGO & LO)
    MAIN ENGINES : 2X CUMMINS NT855 @ 400 BHP EACH @ 1800 RPM
    BOW THRUSTERS : 1XHRP 1001 TT- 100KW @ 1800 RPM
    GENERATORS : 1X150 KM (440 / 220 V, 3PH, 50 HZ) 1X100KVA – HARBOUR GENERATOR – 1
    MOORING EQUIPMENT : 2 NOS. STOCKLESS BOWER ANCHORS EACH WEIGHING 1290 KG FWD ELECTRICALLY DRIVEN WINDLASS WITH MOORING DRUM AND WARPING HEAD
    HOSE HANDLING TELESCOPIC CRANE : 1 NO. HYDRAULIC TELESCOPIC CRANE SWL 1T, MAX BOOM OUTREACH -19M
    CARGO PUMPS : 2 X M/ E DRIVEN @ 200M3 / HR CAPACITY – LUB OIL – 1 X ELEC DRIVEN 10M3 / HR CAPACITY
    BOILER / HEATING COILS : 1 X 500000 KCAL /HR
    NAVIGTION EQUIPMENT: RADAR X 2 NOS, GPS X 1NOS/EPIRB X 1NO, SART X 2 NOS / GMDSS, NAVTEX, AUTO PILOT/ECHO SOUNDER, SPEED LOG
    OTHER EQUIPMENT : PV VALVES, AUTOMATIC TANK SOUNDING GAUGES,HIGH AND HIGH HIGH LEVEL TANK ALARMS, PUMP ROOM GAS DETECTORS,TANK PRESSURE AND TEMP MONITORING SYSTEM.

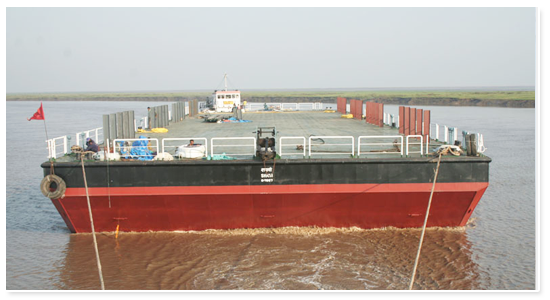

  • FLAT TOP OFFSHORE DUMB BARGE (HULL # 302)

    +

    TECHNICAL SPECIFICATIONS OF 3600 DWT FLAT TOP OFFSHORE DUMB BARGE

    NAME : SHAIVI
    FLAG : INDIA
    CLASS : INDIAN REGISTER OF SHIPPING + SU PONTOON, UNRESTRICTED SERVICE
    G.R.T. : 3897.77 T
    N.R.T : 500 T
    D.W.T. : 1664 T
    LENGTH : 70 M
    BREADTH : 20 M
    DEPTH : 4.5 M
    DRAFT (LOADED) : 3.5 M
    DECK STRENGTH : 10 T / P/ SQ / M
    DECK PLATE : 10 mm
    SHIP SIDE : 10 mm
    BOTTOM : 12 mm

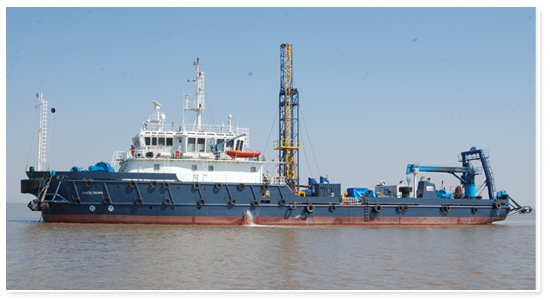

  • GEO TECHNICAL SURVEY VESSEL ( HULL # 304)

    +

    FLAG : MAURITIUS
    OWNER : COASTAL MARINE CONSTRUCTION & ENGINEERING (MAURITIUS) LTD
    CLASS : AMERICAN BUREAU OF SHIPPING (Notation : A1 €, 4 AMS, DP 2
    L.O.A. : 64.00 M
    BREADTH : 13.3 M
    DEPTH MOULDED : 5.20 M
    DESIGN DRAFT : 3.8 M
    D.W.T. : 1050 TONNES
    MAIN ENGINES : 2 X CATERPILLAR MODEL 350 B 968.5 KW @ 1835 RPM
    AZIMUTH STERN THRUSTERS : 2 X HRP 6111 WM FP 950 KW @ 1835 RPM
    BOW THRUSTERS : 2 X HRP 4007 TT 450KW @ 1200 RPM
    GENERATORS : 3 X CATERPILLAR C 18 (500 EKM @ 1800 RPM, 60Hz)
    1 X CATERPILLAR C4.4 (58 EKw @ 1800 RPM, 60Hz)
    FOUR POINT MOORING SYSTEM : 4 X PLIMSOLL WINCHES MODEL PC- HMW / SD-25 / 060D DRUM CAPACITY 1500 M X 32 MM DIA DRUM PULL 25 T X 5/MIN, LOW SPEED 1ST LAYER DRUM PULL 7 T X 14 M/MIN, HIGH SPEED, 1ST LAYER
    HYDRAULIC TELESCOPIC CRANE : 5 TON CAPACITY @ 15 MTR BOOM
    ACCOMMODATION : 49 PERSONS, (15 CREW AND 34 TECHNICIANS)
    MOON POOL : 3.6 M X 4.0 M
    LABORATORY / CONFERENCE ROOM : 1 NOS EACH
    NAVIGATION EQUIPMENT : ARPA RADAR X 2 NOS, GPS X 2NOS, DP2 SYSTEM EPIRB X 2 NOS, SART X 2 NOS, 2GYRO COMPASSES MAGNETIC COMPASS X 1 NOS, ECDIS GMDSS, MINI M, NAVTEX, AUTO PILOT, ECHO SOUNDER, FLEET 77 (BROADBAND)
    OTHER EQUIPMENT : DP2 SYSTEM, 4 POINT MOORING DRILLING UNIT – 2 X 50HP MUD PUMP -1 X 50 HP

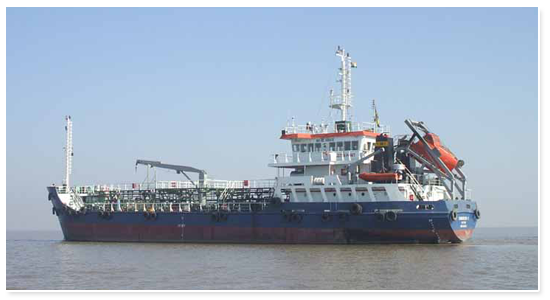

  • DOUBLE HULL PRODUCT (BUNKERING) TANKER (HULL # 305 / 306)

    +

    FLAG : ST.VINCENT
    OWNER : TURQUISE MANAGMENT INC, LIECHTENSTEIN, U.K.
    CLASS : BUREAU VERITAS +HULL, +MACH, ,OIL TANKER, ESP, FP>60C, UNRESTRICTED SERVICE
    L.O.A. : 63.6M
    BREADTH : 12.0M
    DEPTH MOULDED : 5.8M
    DESIGN DRAFT : 4.0M
    D.W.T. : 4.0M
    CARGO TANKS : 8 NOS
    CARGO CAPACITY : 1500 M3
    NO. OF CARGOES : THREE (IFO, MGO & LO)
    MAIN ENGINES : 2X CUMMINS NT855 @ 500 BHP EACH @ 1800 RPM
    BOW THRUSTERS : 1*HRP 1001 TT- 100KW @ 1800 RPM
    GENERTORS : 2X200 KM (440 / 220 V, 3PH, 50 HZ) 1X45KVA – HARBOUR GENERATOR
    MOORING EQUIPMENT : 2NOS. STOCKLESS BOWER ANCHORS EACH WEIGHING 1290 KG FWD ELECTRICALLY DRIVEN WINDLASS WITH MOORING DRUM AND WARPING HEAD
    HOSE HANDLING TELESCOPIC CRANE : 1 NO. HYDRAULIC TELESCOPIC CRANE SWL 1T, MAX BOOM OUTREACH -19M
    CARGO PUMPS : 2 X M/ E DRIVEN @ 200M3 / HR CAPACITY –HFO MGO 1 X ELEC,DRIVEN 200M3 / HR CAPACITY LUB OIL – 1 X ELEC DRIVEN 10M3 / HR CAPACITY
    BOILER / HEATING COILS : 1 X 500000 KCAL /HR
    NAVIGTION EQUIPMENT : RADAR X 2 NOS, GPS X 1NOS/EPIRB X 1NO, SART X2NOS/GMDSS, NAVTEX, AUTO PILOT/ECHO SOUNDER, SPEED LOG
    OTHER EQUIPMENT : PV VALVES, AUTOMATIC TANK SOUDING GAUGES,HIGH AND HIGH HIGH LEVEL TANK ALARMS, PUMP ROOM GAS DETECTORS,TANK PRESSURE AND TEMP.MONITORING SYSTEM.

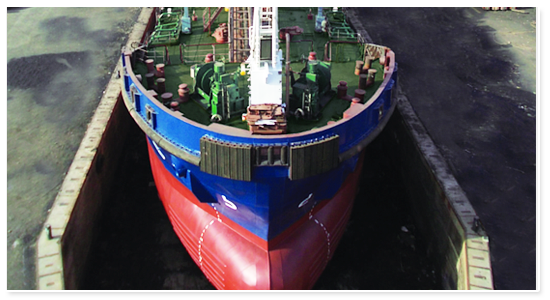

  • DOUBLE HULL PRODUCT TANKER (HULL # 307)

    +

    FLAG : LIBERIA
    CLASS : RING, C= (Malta Cross) OIL TANKER, ESP, FLASH POINT >60°C, UNRESTRICTED SERVICES, CLEAN SEA, AUT-UMS, GREEN STAR, IWS, CARGO CONTROL.
    L.O.A. : 75.00M
    BREADTH : 13.50M
    DEPTH MOULDED : 7.3m
    DRAFT (SCANTLING) : 5.60M
    D.W.T. : 3300TON
    CARGO TANKS : 12TANKS FOR HFO;6TANKS FOR GO ; 1 RECOVERY TANK
    CARGO PUMP : HFO 350 M3/HR PER TANK (WITH A TOTAL MAX OF 1500M3/HR) GO:150M3/HR PER TANK ( WITH A TOTAL MAX OF 450M3/HR)
    NO. OF CARGOES : TWO HFO AND GO
    MAIN ENGINES : 2*1287kw CATERPILLAR @ 1000 RPM DIESEL ENGINES
    AZIMUTH STERN THRUSTERS : 2*1230kw HRP THRUSTER STEARABLE / PROPULSION
    BOW THRUSTERS : ONE THRUSTER OF THE “BOW JET” TYPE-WITH ELECTRIC MOTOR OF 350KW AND REVOLUTION CONTROL THROUGH A FREQUENCY CONVERTOR-ELECTRO HYDRAULIC CONTROL.
    GENETORS : 2*500KW (625KVA), SHAFT GENERATOR. ONE AUXILLARY GENERATOR, DRIVEN BYDIESEL ENGING, ELECTRICAL POWERIN CONTINOUS SERVICE OF ATLEAST 175 KW (220KVA) AT REVOLUTIONS 1500MAX. ONE EMERGENCY GENERATOR 75KW (95 KVA) AT REVOLUTIONS 1500 RPM .3*380V E3*220V-50HZ; EMERGENCY LIGHT SHALL BE 2*220V-50HZ
    HYDRAULIC HOSE CRANE : HOSE HANDLINGCRANE 2 TON AT 19METERS BOOM
    NAVIGATION EQUIPMENT : RADAR X 2 NOS, GPS X 1NOS EPIRB X 1 NOS, SART X 2NOS MAGNETIC COMPASS X 1 NOS GMDSS, NAVTEX, AUTOP PILOT ECHO SOUNDER, SPEED LOG
    OTHER EQUIPMENT : PV VALVES AUTOMATIC TANK SOLUDING GAUGES HIGH AND HIGH HIGH LEVEL TANK ALARMS PUMP ROOM GAS DETECTORS

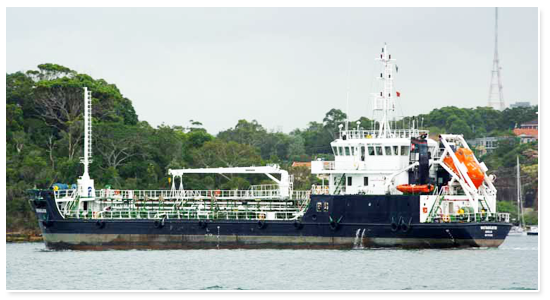

  • PRODUCT TANKER (HULL # 308)

    +

    FLAG : ISLE OF MAN
    OWNER : WHITAKER TANKERS LTD. U.K.
    CLASS : BUREAU VERRITAS + HULL, +MACH,PIL TANKER ESP, FP>60CUMS-AUT, UNRESTRICTED SERVICE
    L.O.A : 69.60M
    BREADTH : 12.00M
    DEPTH MOULDED : 6.00M
    DESIGN DRAFT : 4.20M
    D.W.T. : 1700DWT
    CARGO TANKS : 10NOS
    CARGO CAPACITY : 17000CBM
    NO. OF CARGOES : TWO GRADES (HFO + MGO)
    MAIN ENGINES : 2 X 600 BHP @ 1800 RPM KT-19 OF CUMMINS
    BOM THRUSTERS : FIXED PITCH PROPELLER 150 KW TUNNEL THRUSTER, ELECTRICAL DRIVEN
    GENERATIRS : 2 X 250 KW AT 1500RPM 75KW @ 1500 RPM 75KW @ 1500RPM
    MOORING SYSTEM : ELECTRICAL TWIN GYPSY AND TWIN MOORING DRUM WITH TWIN WARPING HEAD.
    CARGO PUMP : 2 X M/E DRIVEN 350 M3 /HR @ 8 BAR CAPACITY 2 X ELECTRIC DRIVEN 150M3 / HR @ BAR CAPACITY
    BOILER / HEATING COILS : 1 X 500000 Kca /HR
    HOSE HANDLING CRANE : 1 TON CAPACITY @ 19 MTR BOOM
    NAVIGATION EQUIPMENT : RADAR X 2NOS, GPS X1 NOS EPIRB X 1 NOS, SART X 2 NOS GMDASS, NAVTEX, AUTO PILOT ECHO SOUNDER, SPEED LOG.
    OTHER EQUIPMENT : PV VALVES AUTIMATIC TANK SOUNDING GAUGES HIGH AND HIGH HIGH LEVEL TANK ALARMS PUMP ROOM GAS DETCTORS.

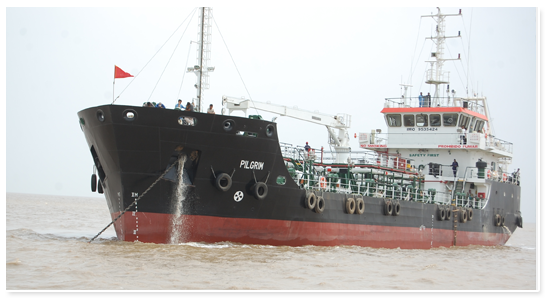

  • PRODUCT TANKER (HULL # 309)

    +

    FLAG : ST.VINCENT
    OWNER : TURQUISE MANAGEMENT INC, LIECHTENSTEIN, U.K.
    CLASS : BUREAU VERITAS,
    L.O.A. : 60.56 M
    BREADTH : 12.0M
    DEPTH MOULDED : 6.0 M
    DESIGN DRAFT : 4.20 M
    D.W.T. : 1520.20 T
    CARGO TANKS : 8 NOS
    CARGO CAPACITY : 1470 M3
    NO. OF CARGOES : THREE (IFO, MGO & LO)
    MAIN ENGINES : 2X CATERPILLAR MODEL C18 @ 587 BHP EACH @ 1800 RPM BOW THRUSTERS : 1XHRP 1001 TT- 100KW @ 1800 RPM
    GENERATORS : 2X275 Kw (440 / 220 V, 3PH, 50 HZ) 1X52 KW – HARBOUR GENERATOR
    MOORING EQUIPMENT : 2 NOS. STOCKLESS BOWER ANCHORS EACH WEIGHING 1290 KG FWD ELECTRICALLY DRIVEN WINDLASS WITH MOORING DRUM AND WARPING HEAD
    HOSE HANDLING TELESCOPIC CRANE : 1 NO. HYDRAULIC TELESCOPIC CRANE SWL 1T, MAX BOOM OUTREACH -18M
    CARGO PUMPS : 2 X ELEC DRIVEN @ 250M3 / HR CAPACITY FOR HFO – 2 X ELEC DRIVEN 150M3 / HR CAPACITY FOR MGO
    BOILER / HEATING COILS : 1 X 500000 KCAL /HR
    NAVIGTION EQUIPMENT: RADAR X 2 NOS, GPS X 1NOS / EPIRB X 1NO, SART X2NOS / GMDSS, NAVTEX, AUTO PILOT / ECHO SOUNDER, SPEED LOG
    OTHER EQUIPMENT : PV VALVES, AUTOMATIC TANK SOUNDING GAUGES, HIGH AND HIGH HIGH LEVEL TANK ALARMS, PUMP ROOM GAS DETECTORS,TANK PRESSURE AND TEMP.MONITORING SYSTEM.

  • PRODUCT TANKER (HULL # 310)

    +

    FLAG : ST.VINCENT
    OWNER : TURQUISE MANAGEMENT INC, LIECHTENSTEIN, U.K.
    CLASS : BUREAU VERITAS,
    L.O.A. : 60.56 M
    BREADTH : 12.0M
    DEPTH MOULDED : 6.0 M
    DESIGN DRAFT : 4.20 M
    D.W.T. : 1520.20 T
    CARGO TANKS : 8 NOS
    CARGO CAPACITY : 1470 M3
    NO. OF CARGOES : THREE (IFO, MGO & LO)
    MAIN ENGINES : 2X CATERPILLAR MODEL C18 @ 587 BHP EACH @ 1800 RPM BOW THRUSTERS : 1XHRP 1001 TT- 100KW @ 1800 RPM
    GENERATORS : 2X275 Kw (440 / 220 V, 3PH, 50 HZ) 1X52 KW – HARBOUR GENERATOR
    MOORING EQUIPMENT : 2 NOS. STOCKLESS BOWER ANCHORS EACH WEIGHING 1290 KG FWD ELECTRICALLY DRIVEN WINDLASS WITH MOORING DRUM AND WARPING HEAD
    HOSE HANDLING TELESCOPIC CRANE : 1 NO. HYDRAULIC TELESCOPIC CRANE SWL 1T, MAX BOOM OUTREACH -18M
    CARGO PUMPS : 2 X ELEC DRIVEN @ 250M3 / HR CAPACITY FOR HFO – 2 X ELEC DRIVEN 150M3 / HR CAPACITY FOR MGO
    BOILER / HEATING COILS : 1 X 500000 KCAL /HR
    NAVIGTION EQUIPMENT: RADAR X 2 NOS, GPS X 1NOS / EPIRB X 1NO, SART X2NOS / GMDSS, NAVTEX, AUTO PILOT / ECHO SOUNDER, SPEED LOG
    OTHER EQUIPMENT : PV VALVES, AUTOMATIC TANK SOUNDING GAUGES, HIGH AND HIGH HIGH LEVEL TANK ALARMS, PUMP ROOM GAS DETECTORS,TANK PRESSURE AND TEMP.MONITORING SYSTEM.

  • OIL TANKER (HULL # 312)

    +

    FLAG : INDIAN
    OWNER : UNION TERRITORY OF LAKSHADWEEP ADMINISTRATION
    CLASS : IRS, SWASTIK, SUL, TANKER FOR CARRIAGE OF OIL (FP > 60°C) SWASTIK IY
    L.O.A. : 41.60 M
    BREADTH : 8.4 M
    DEPTH MOULDED : 4.0 M
    DRAFT : 2.72 M
    CARGO TANKS : 4 NOS
    CARGO CAPACITY : 150 T
    NO. OF CARGOES : ONE (LSHFHSD)
    MAIN ENGINES : CUMMINS, KTA19M3 2 X 600 BHP @ 1800 RPM
    GENERATORS : KIRLOSKAR, 3 X 125 KVA, 154 BHP@500RPM
    GEAR BOX : ZF MARINE, ZFW650
    PROPULSION : TWIN SCREW CONVENTIONAL
    STEERING GEAR : ELECTRO HYDRAULIC SYSTEM, MAKE- HYDRIVE
    CARGO PUMP : DOUBLE SCREW, MAKE- ROTO PUMP
    NAVIGTION EQUIPMENT : RADAR, GYRO COMPASS, ECHO SOUNDER, SPEED LOG, DGPS, GMDSS, ANEMOMETER ETC.
    OTHER EQUIPMENT : AUTOMATIC TANK GAUGING SYSTEM, HVAC SYSTEM, HOSE HANDLING DAVIT.

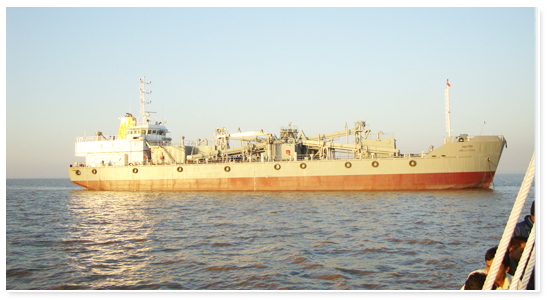

  • CEMENT CARRIER (HULL # 313)

    +

    FLAG : INDIA
    OWNER : AMBUJA CEMENTS LIMITED
    CLASS : INDIAN REGISTER OF SHIPPING +SUL“For Carriage of Cement in Bulk” Indian Coastal Service
    G.R.T. : 2331 MT
    N.R.T : 699 MT
    D.W.T. : 2800 MT
    LENGTH : 80.660 M
    BREADTH : 15.00 M
    DEPTH : 6.600 M
    DRAFT (LOADED) : 4.10 M
    MAIN ENGINES : YANMAR MODEL 6RY17P-GV, 2 X 1000 BHP @ 1500 RPM
    GENERATORS : CATERPILLAR MODEL C9, 2 x 188 KVA, EMERGENCY 1 x 10.5 KVA
    CARGO LOADING CAPACITY : 700 TONS PER HOUR ORDINARY PORTLAND CEMENT
    CARGO UNLOADING CAPACITY : 400 TONS PER HOUR ORDINARY PORTLAND CEMENT

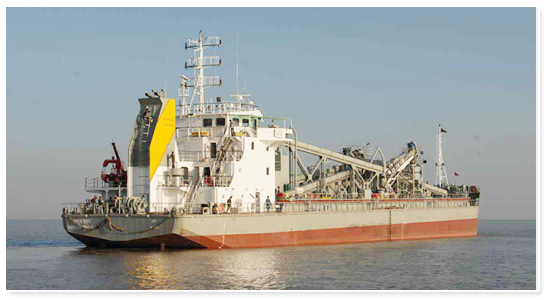

  • CEMENT CARRIER (HULL # 314)

    +

    FLAG : INDIA
    OWNER : AMBUJA CEMENTS LIMITED
    CLASS : INDIAN REGISTER OF SHIPPING +SUL“For Carriage of Cement in Bulk” Indian Coastal Service
    G.R.T. : 2990 MT
    N.R.T : 1074 MT
    D.W.T. : 4000 MT
    LENGTH : 97 MTR
    BREADTH : 17.00 M
    DEPTH : 6.600 M
    DRAFT (LOADED) : 4.20 M
    MAIN ENGINES : CATERPILLAR 3512B, 2 X 1300 BHP @ 1800 RPM
    GENERATORS : CATERPILLAR MODEL C9, 2 x 175 KKW, EMERGENCY 1 x 12.5 KW CARGO LOADING CAPACITY : 700 TONS PER HOUR ORDINARY PORTLAND CEMENT
    CARGO UNLOADING CAPACITY : 500 TONS PER HOUR ORDINARY PORTLAND CEMENT

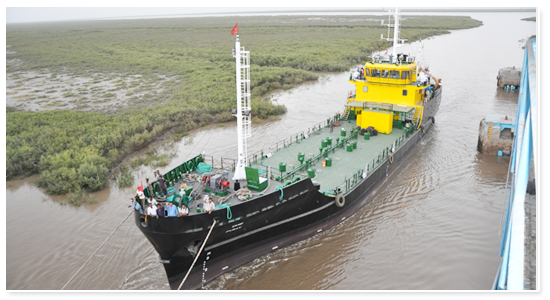

  • FUEL BARGES (HULL # 316 - 322)

    +


    FLAG : INDIA
    OWNER : INDIAN NAVY
    CLASS : IRS, SWASTIK SUL, TANKER FOR CARRIAGE OF OIL (FP > 60°C) SWASTIK IY
    L.O.A. : 57.35 M
    BREADTH : 11.00 M
    DEPTH MOULDED : 4.20 M
    DRAFT : 2.81 M
    GRT : 731
    CARGO TANKS : 10 NOS
    CARGO CAPACITY : 500 T
    NO. OF CARGOES : TWO (LSHFHSD AND AVCAT)
    MAIN ENGINES : CUMMINS, 700 BHP @ 2100 RPM
    GENERATORS : CUMMINS 2 X 140 KVA
    GEAR BOX : TWIN DISC
    PROPULSION : TWIN SCREW CONVENTIONAL
    STEERING GEAR : ELECTRO HYDRAULIC SYSTEM, MAKE- GEETA ENGINEERING
    CARGO PUMP : SCREW PUMP, MAKE- TUSHACO PUMPS
    NAVIGTION EQUIPMENT : RADAR, ECHO SOUNDER, VHF, SART, EPIRB ETC.
    OTHER EQUIPMENT : AUTOMATIC TANK GAUGING SYSTEM, AFDS, SHAFT TACHOMETER ETC.
